Karaoke machine instruction manual details page

Click to view the English instruction manual

V60 Manual

V80 Max Manual

Connection Diagram

Follow the signal flow below to connect your system correctly.

🎵 Karaoke Unit

5-in-1 Main System

➡️

📺 TV

HDMI Cable

Video + Background Music

🎵 Karaoke Unit

Audio Output

➡️

🔊 Speakers

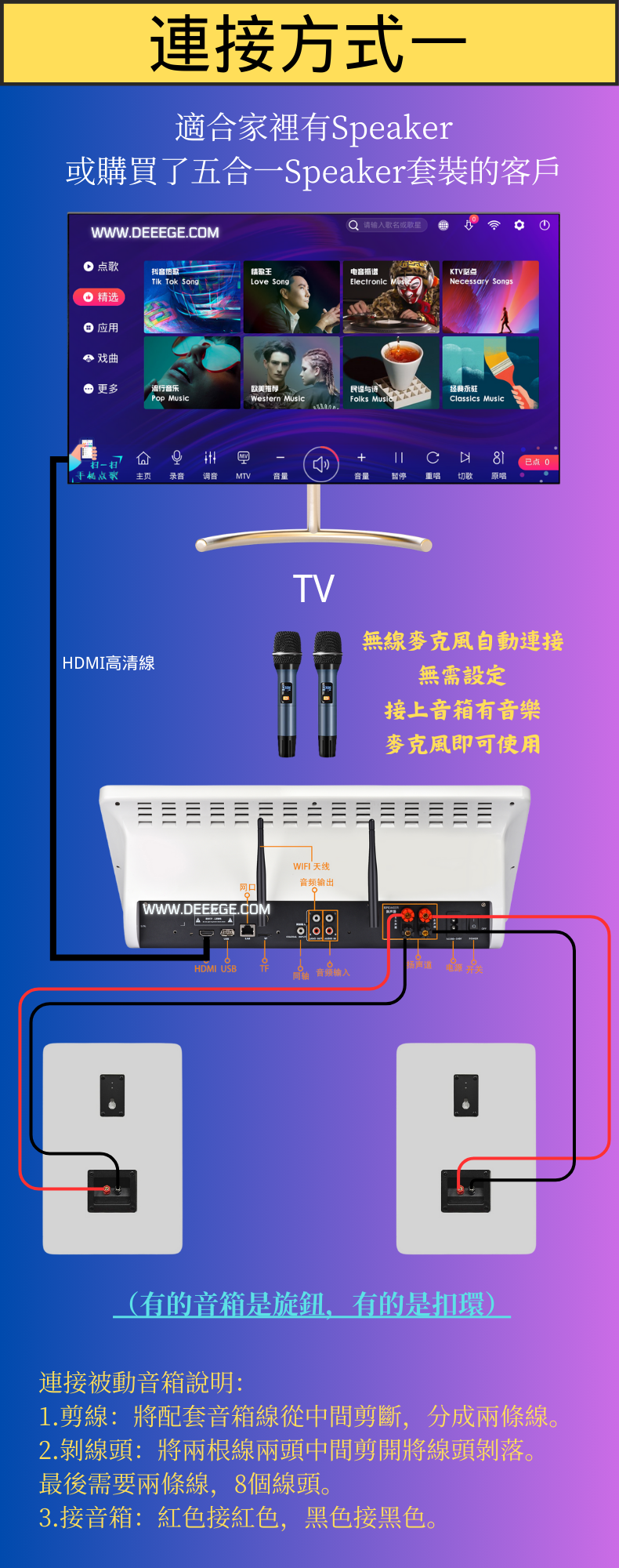

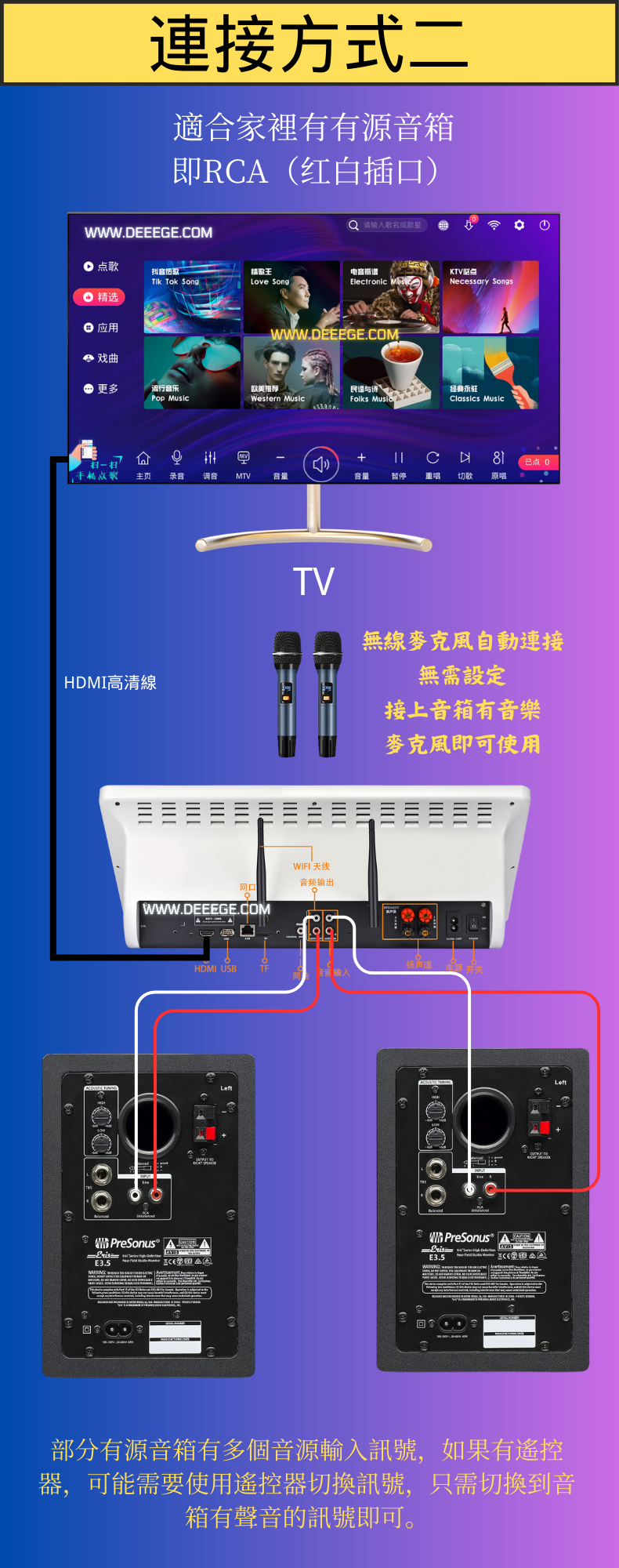

Option 1: RCA (Red / White)

Option 2: Speaker Port

Microphone + Music Output

🎤 Wireless Microphones

🎤 ➜ 🎵 ➜ 🔊

Microphones connect automatically to the Karaoke Unit.
No setup required. Vocal sound is mixed and sent to speakers.

Important:
HDMI → TV (for display)
RCA or Speaker Port → Speakers (for microphone sound)

If you only connect HDMI to the TV, you may hear music but no microphone sound.
